SEETEC 4K280-9HSD-CO 27" 4K Ultra-HD Resolution Carry-on Broadcast Director Monitor for CCTV Monitoring & Making Movies
Model：4K280-9HSD-CO
Introduction
Screen Size： 27"
Resolution： 3840×2160 pixels
Aspect ratio： 16:9
Brightness： 400cd/m2
Input
SDI, HDMIx4, DVI, VGA, Audio(L/R)
Output
SDI, Stereo Headphone, Speaker(built-in)
DM
Shop/2025/9/4K-156-173-238-280-en.jpg
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES

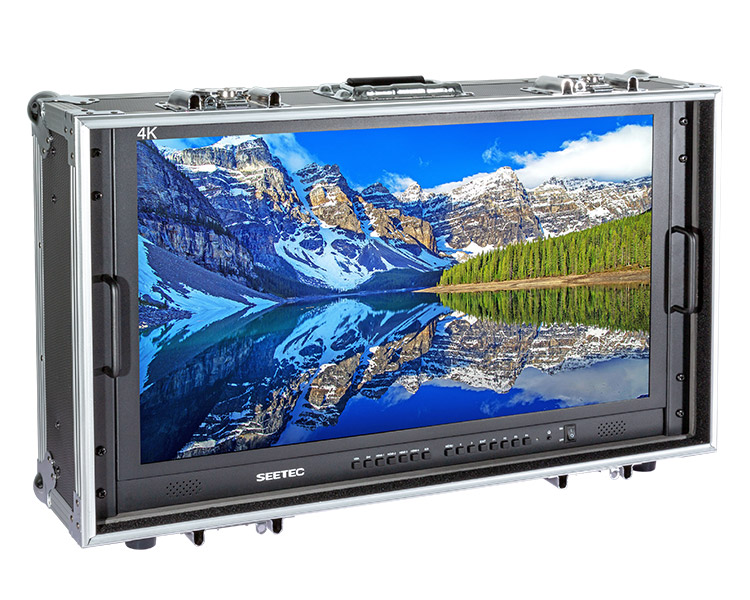

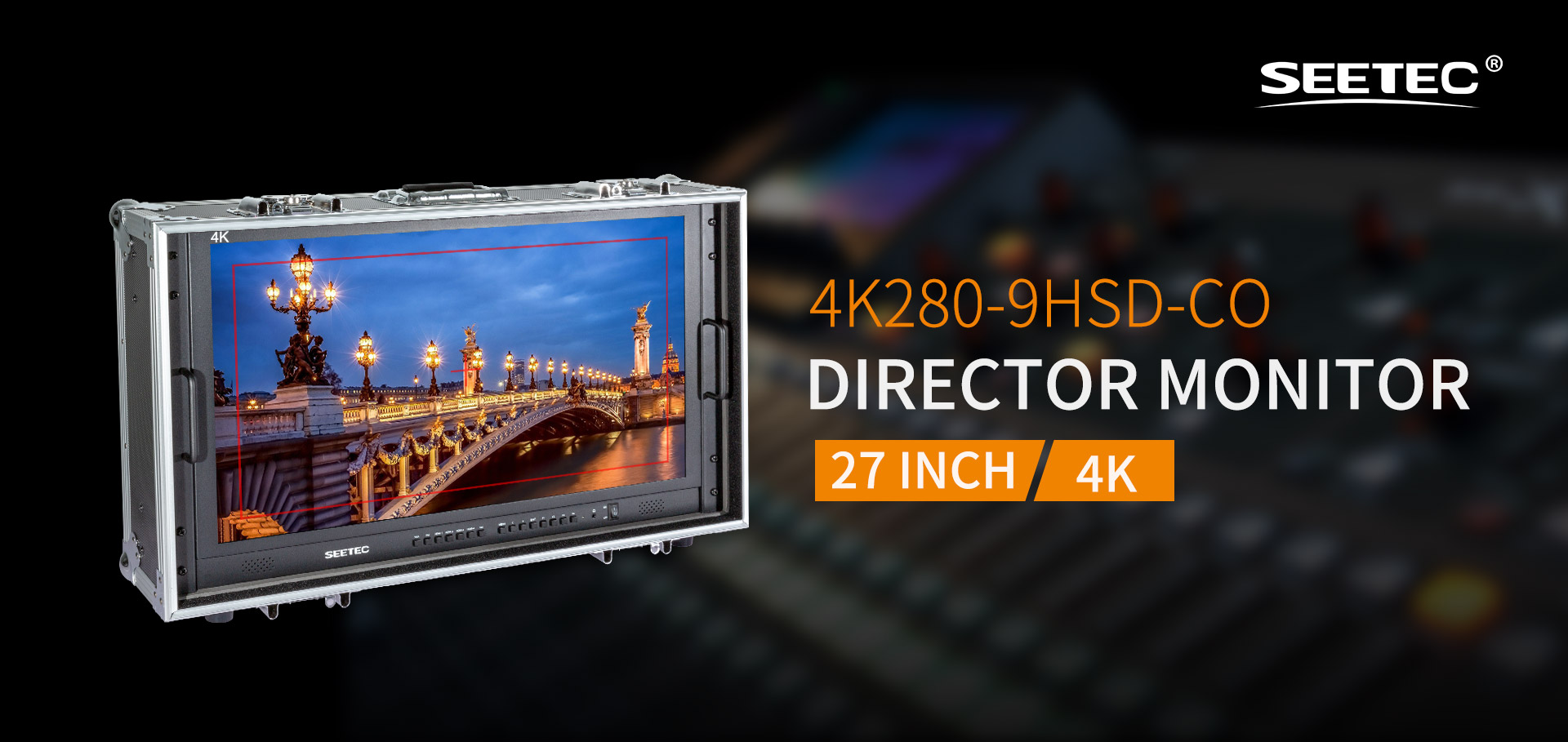

27” 4K Broadcast Monitor
SEETEC 4K280-9HSD-CO is a 4K broadcast monitor which features ultra HD resolution and wide color gamut screen, bring best real visual experience to users. Provides rich signal interfaces, and supports Quad views splitting from different input signals simultaneously, which providing a efficient solution for application in multi-camera monitoring. Can widely application in studio, filming, live events, micro-film production and other various applications.
SEETEC 4K280-9HSD-CO is a 4K broadcast monitor which features ultra HD resolution and wide color gamut screen, bring best real visual experience to users. Provides rich signal interfaces, and supports Quad views splitting from different input signals simultaneously, which providing a efficient solution for application in multi-camera monitoring. Can widely application in studio, filming, live events, micro-film production and other various applications.

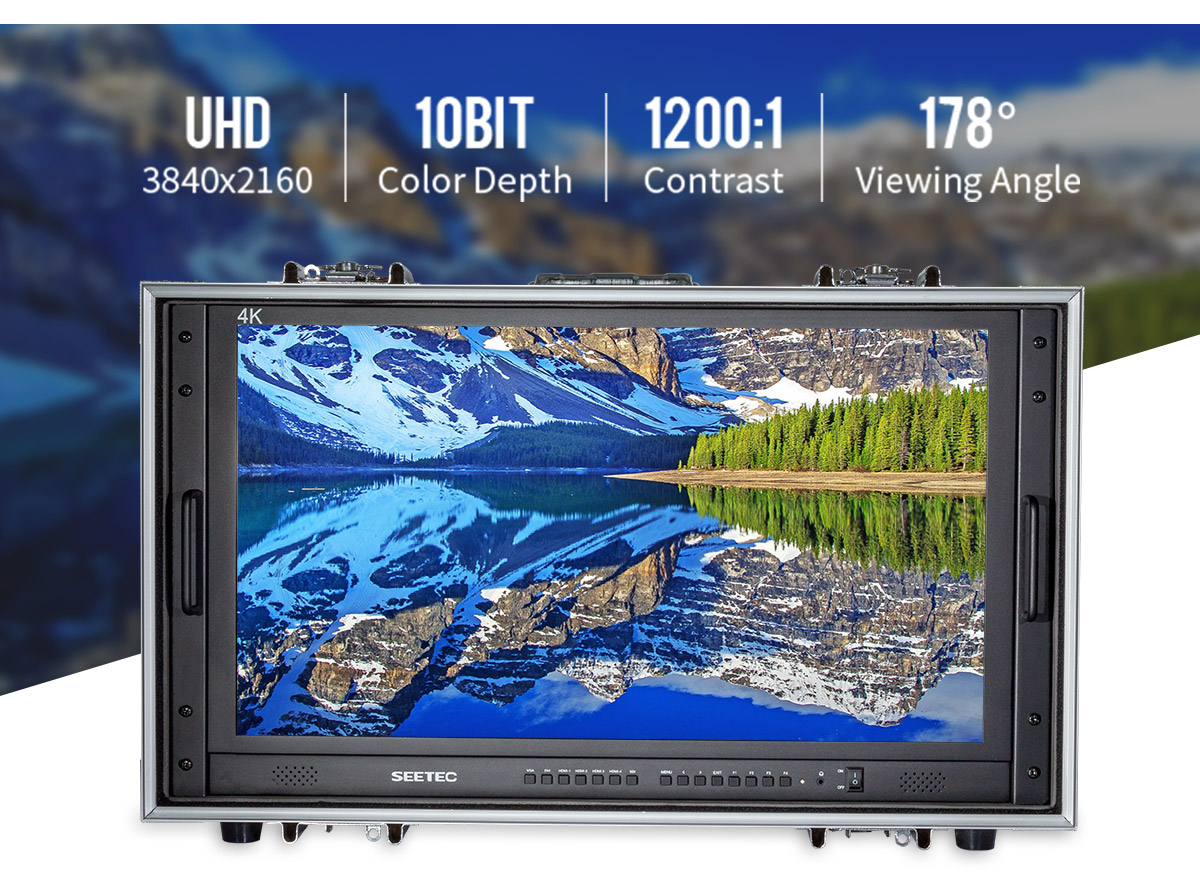

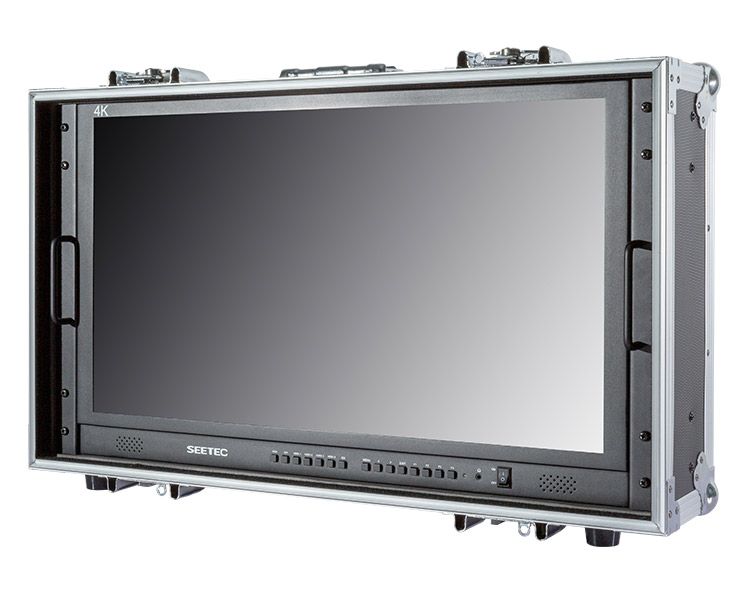

27-inch Ultra HD Screen
Clearly checking very pixel of image
With extremely high resolution 27-inch IPS panel so it will display every pixel in an Ultra HD image. That means you get an incredibly clean image with deep color fidelity.
Clearly checking very pixel of image
With extremely high resolution 27-inch IPS panel so it will display every pixel in an Ultra HD image. That means you get an incredibly clean image with deep color fidelity.

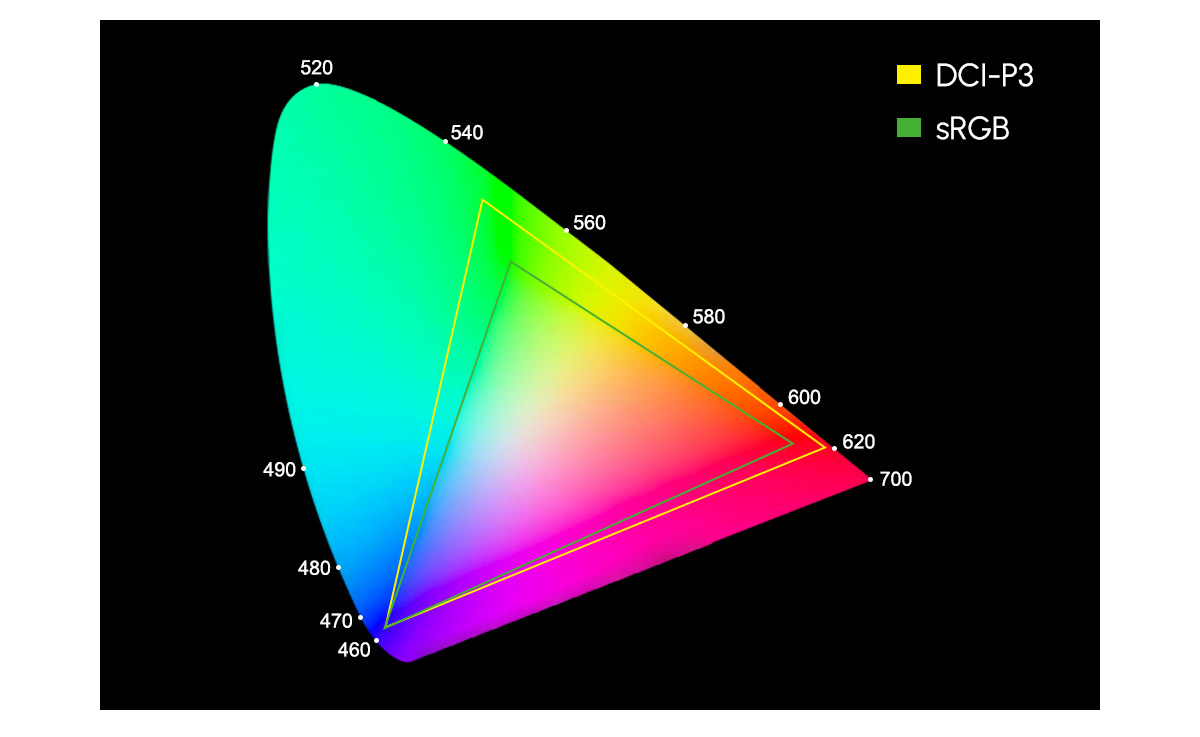

Covering Wide Color Gamut
Covering 95% DCI-P3 cinematic grade and 100% sRGB color gamut, accurately restoring image colors and showcasing more image details.
Covering 95% DCI-P3 cinematic grade and 100% sRGB color gamut, accurately restoring image colors and showcasing more image details.

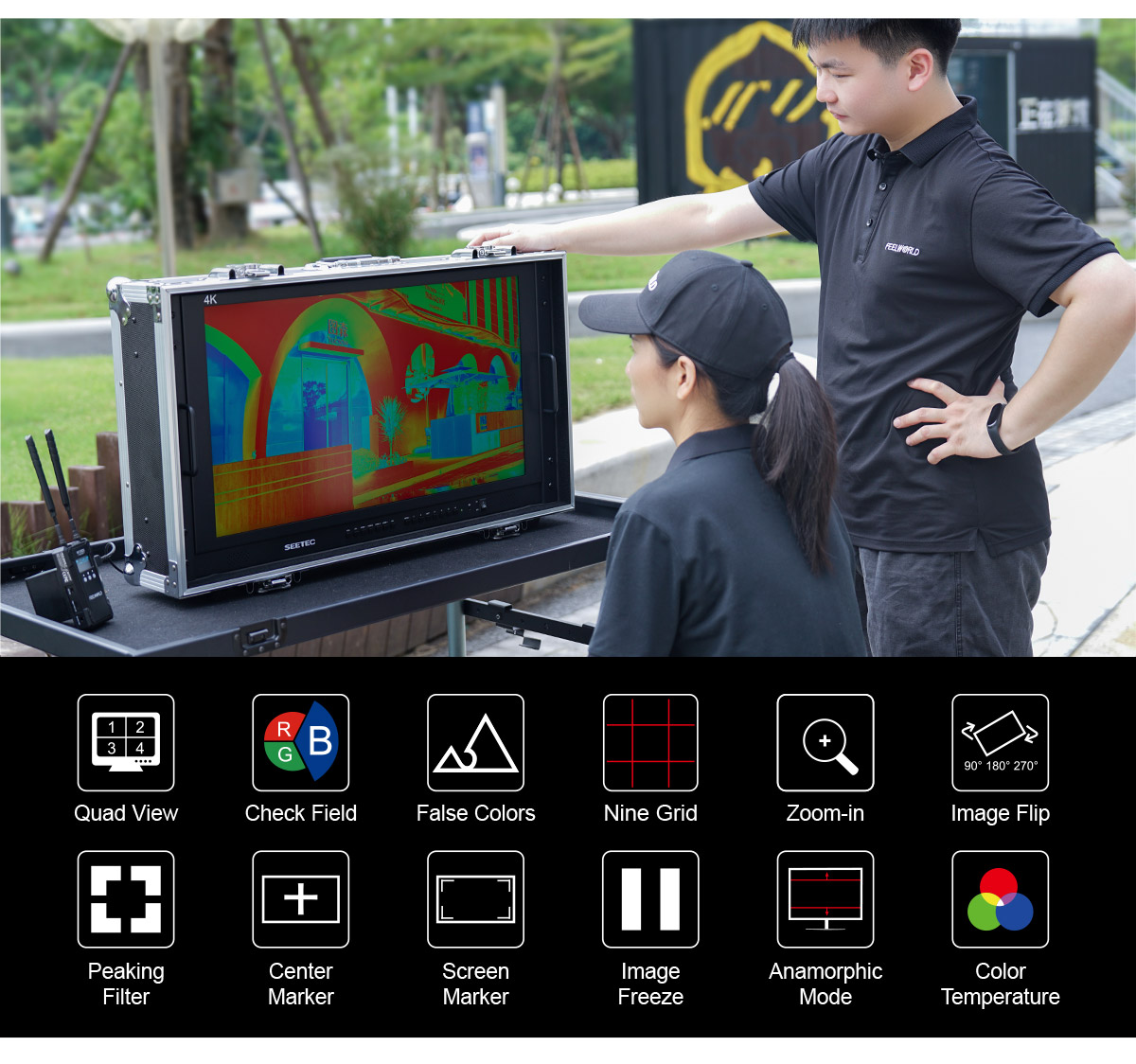

More Auxiliary Functions
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

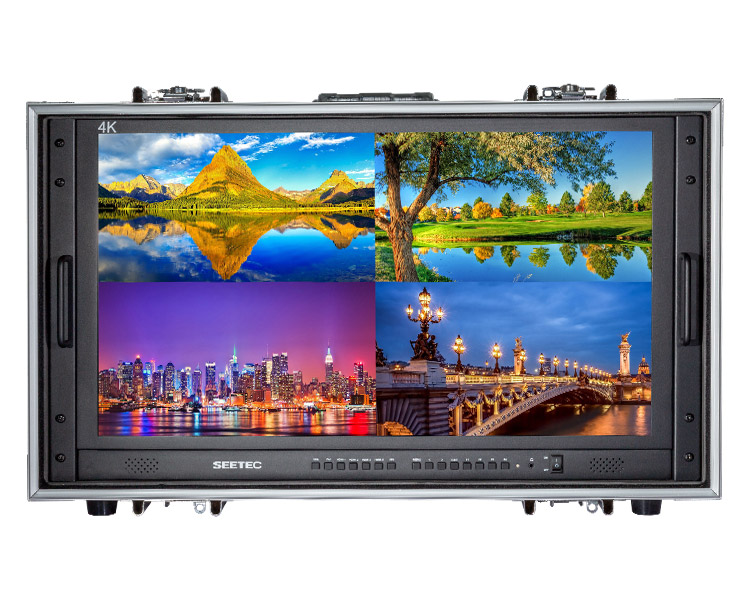

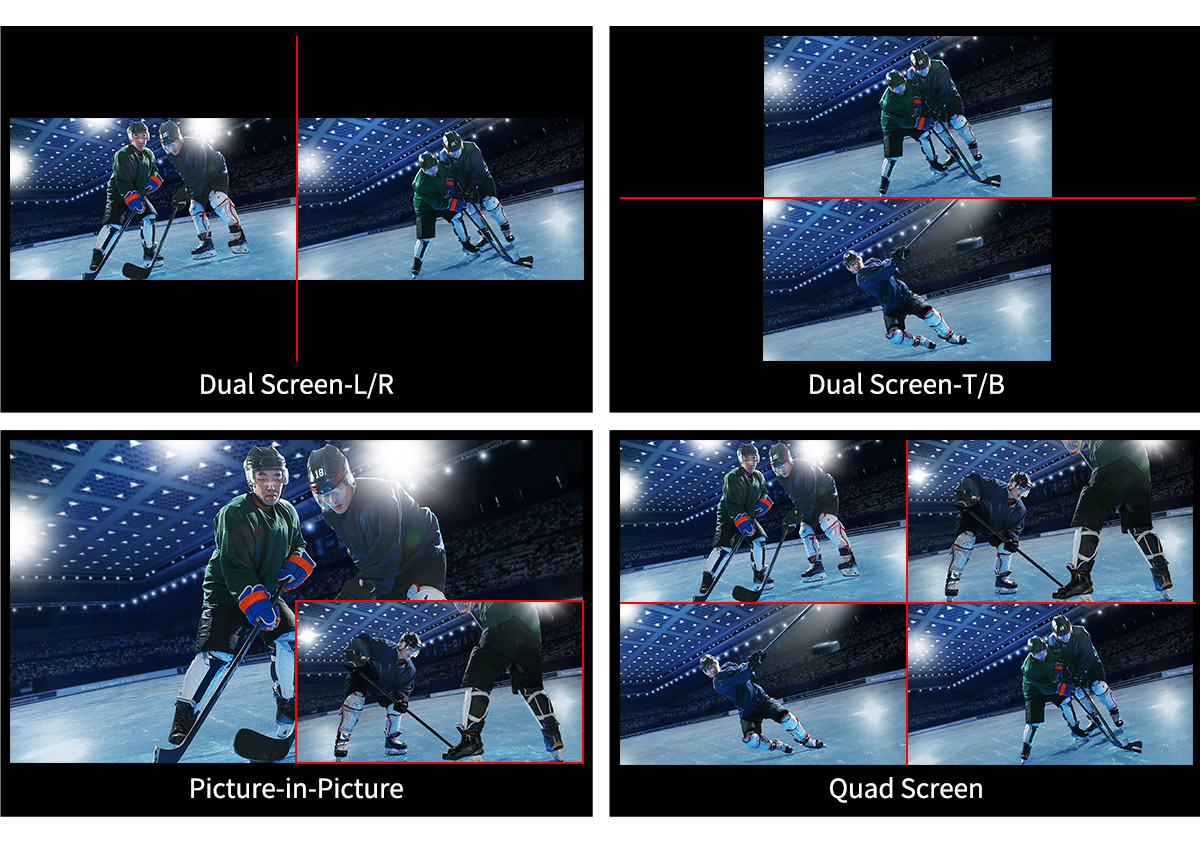

Multiple Screen Mode，Convenient For Simultaneous Monitoring
The screen can be set to single screen, dual screen, picture-in-picture and quad screen, meet different monitoring needs.
Note: When setting dual screen L/R and T/B,the Aspect Ratio need to adjust to 16:9 first.
The screen can be set to single screen, dual screen, picture-in-picture and quad screen, meet different monitoring needs.
Note: When setting dual screen L/R and T/B,the Aspect Ratio need to adjust to 16:9 first.

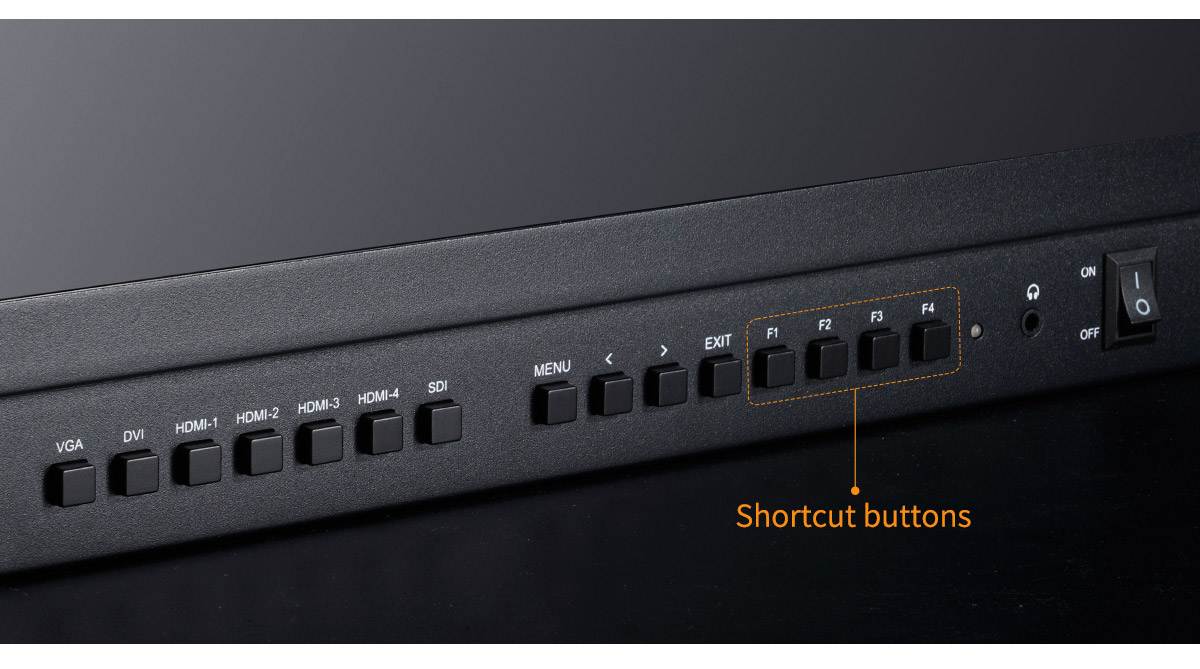

Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment.4K280-9HSD-CO is equipped with multi operation buttons,can switch between one-button sources, and 4 shortcut buttons (F1~F4), you can custom shortcut function according to your needs, such as check field, safe frame and so on.
When you are busy at the shooting scene, you need to be able to easily control the equipment.4K280-9HSD-CO is equipped with multi operation buttons,can switch between one-button sources, and 4 shortcut buttons (F1~F4), you can custom shortcut function according to your needs, such as check field, safe frame and so on.

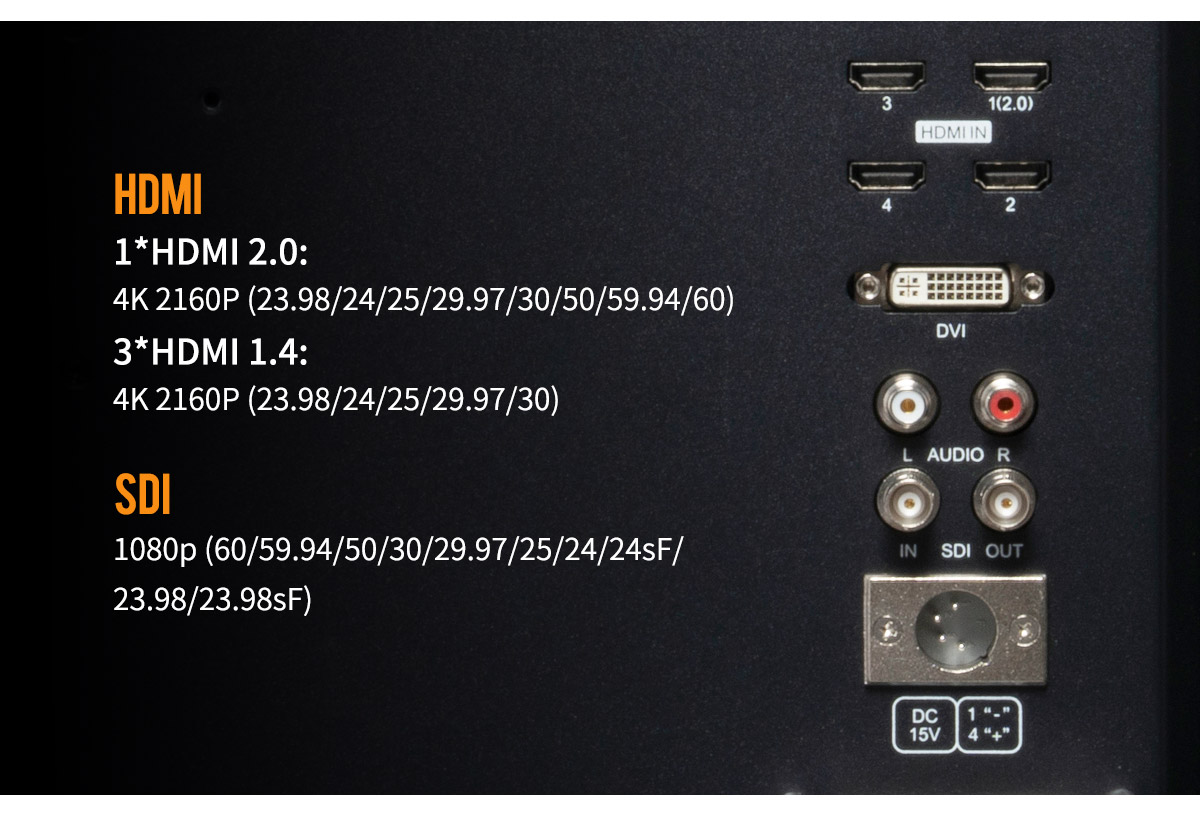

Multiple Signal Interfaces, Satisfy Different Needs
The monitor is equipped with 3G-SDI, HDMI, DVI, VGA, Audio L/R, Tally interfaces, meet all HD, SD, analogue video signal input and display demand.
The monitor is equipped with 3G-SDI, HDMI, DVI, VGA, Audio L/R, Tally interfaces, meet all HD, SD, analogue video signal input and display demand.

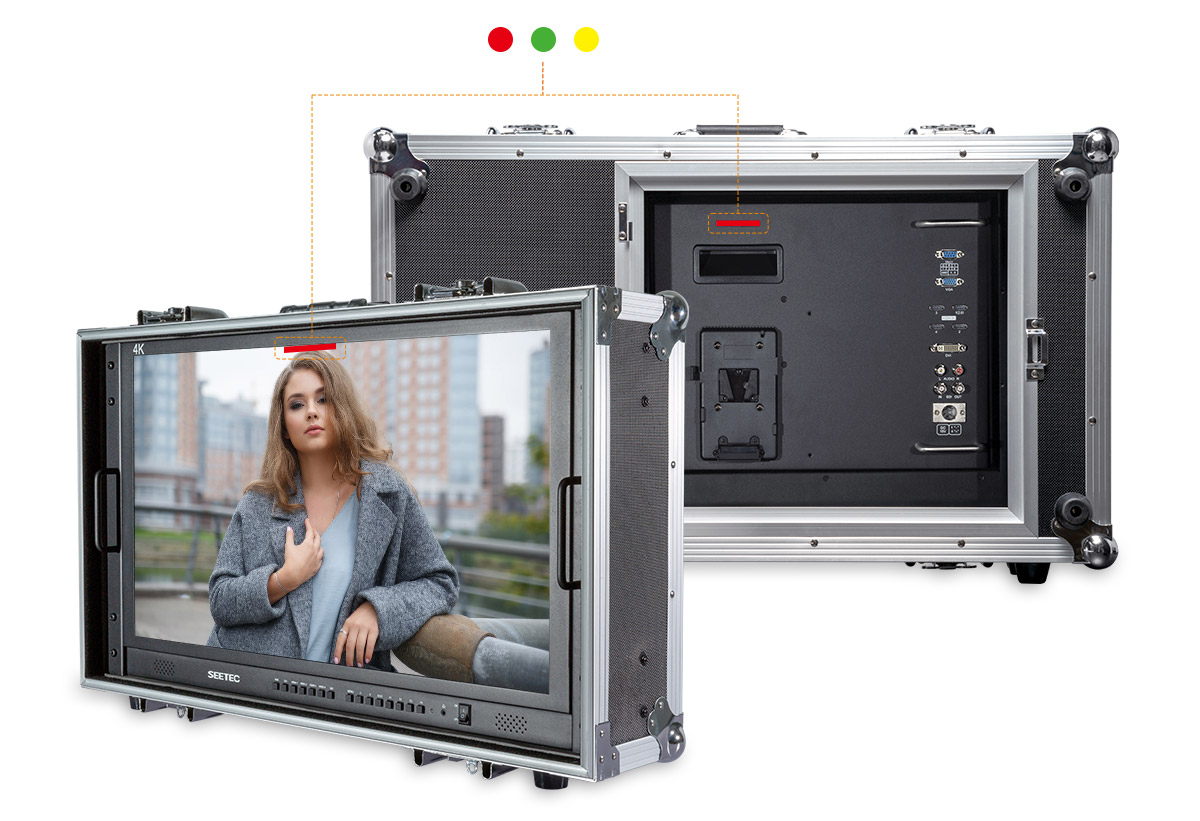

3-color Tally Light, Enhance Team Cooperation
The monitor includes tally indicator on the rear panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.
The monitor includes tally indicator on the rear panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

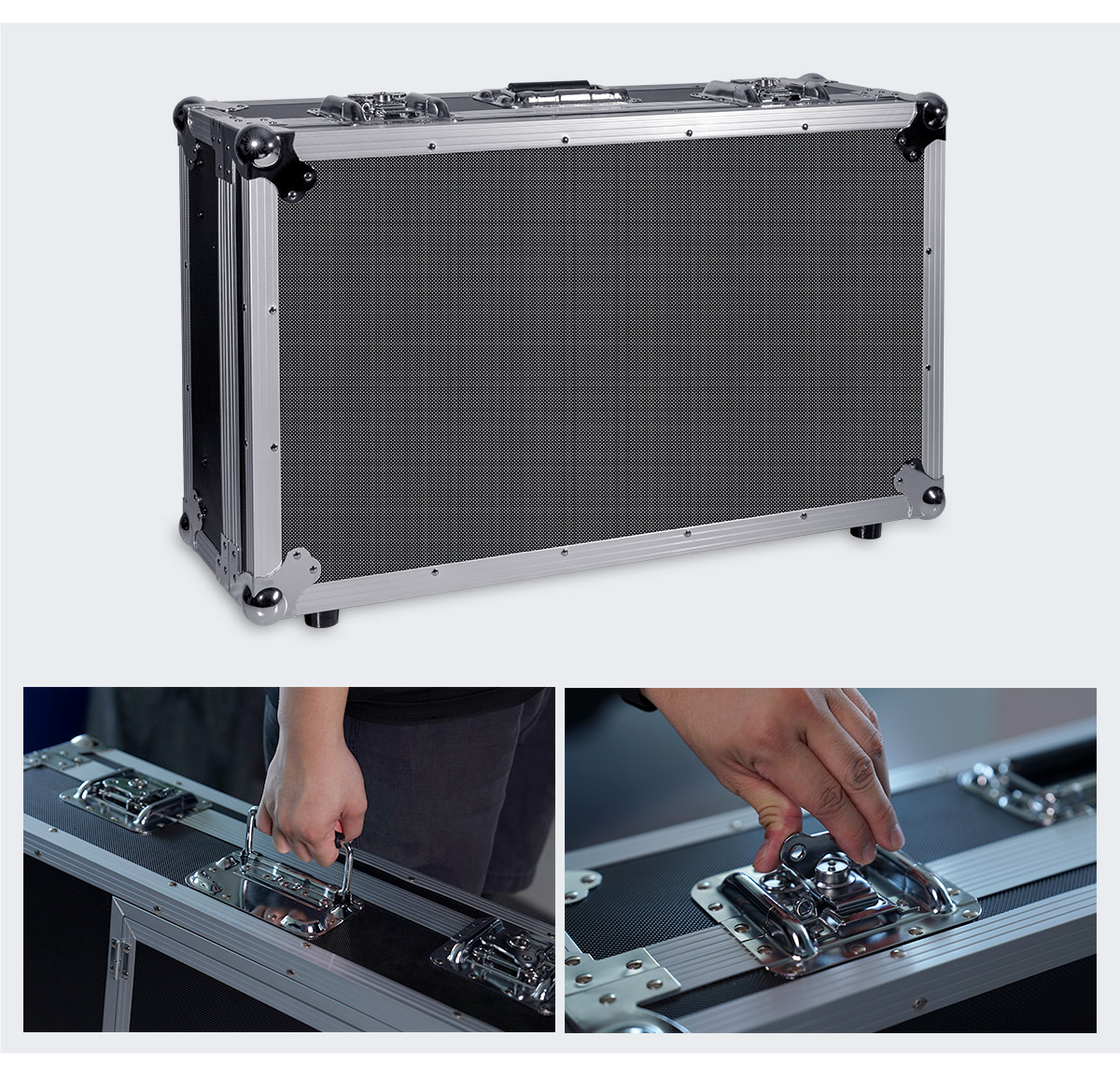

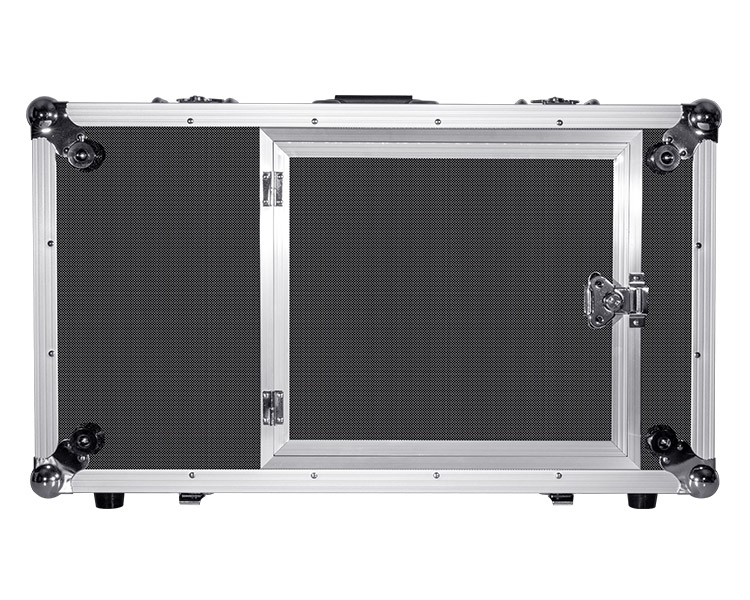

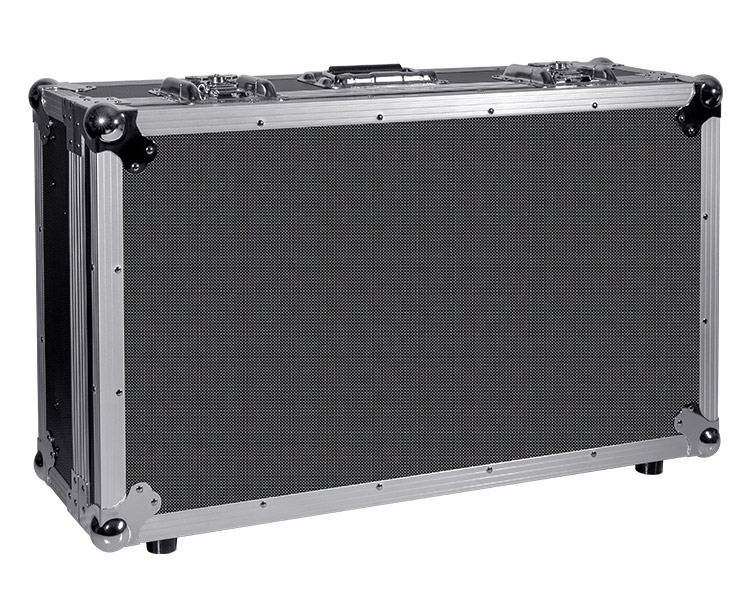

Portable Aviation Aluminum Case
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during on-set production. 4K280-9HSD-CO with rugged and durable aluminium case, both the case links and the front and rear covers are adopt beautiful butterfly shape locksit is suitable for carrying and application in different environments, and provides a safer protection for the monitor.
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during on-set production. 4K280-9HSD-CO with rugged and durable aluminium case, both the case links and the front and rear covers are adopt beautiful butterfly shape locksit is suitable for carrying and application in different environments, and provides a safer protection for the monitor.

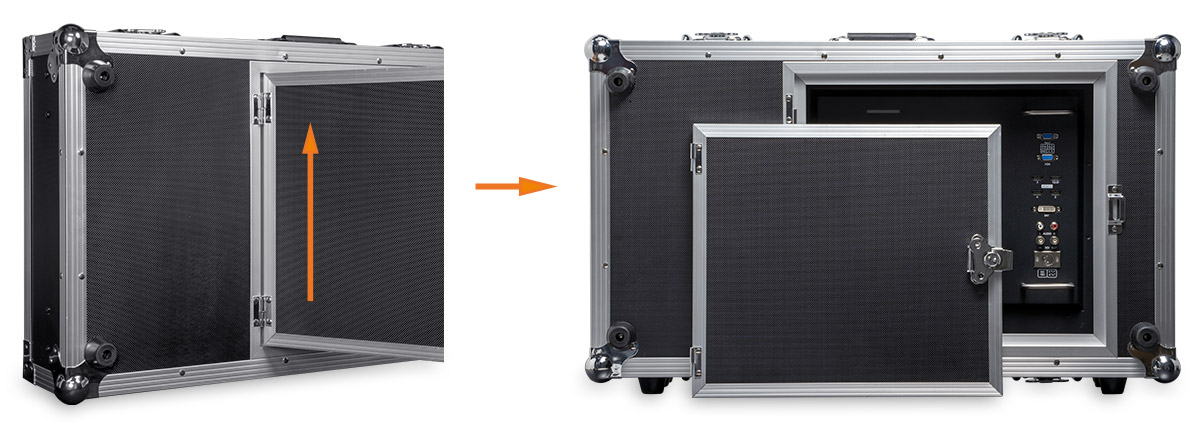

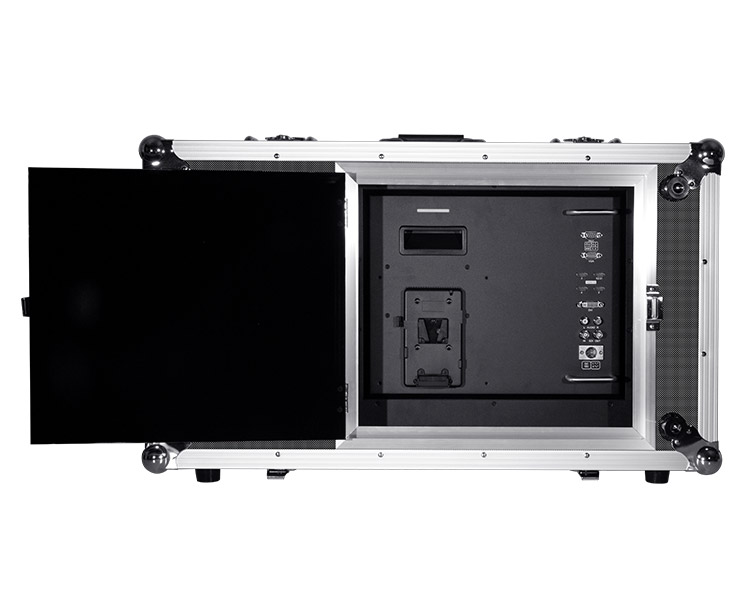

Quickly Disassemble and Assemble, Without Tools Required
The innovative combined structure design can quickly complete the disassembly and installation of the monitor, and easily to make the monitor use for both indoor and outdoor.
The innovative combined structure design can quickly complete the disassembly and installation of the monitor, and easily to make the monitor use for both indoor and outdoor.

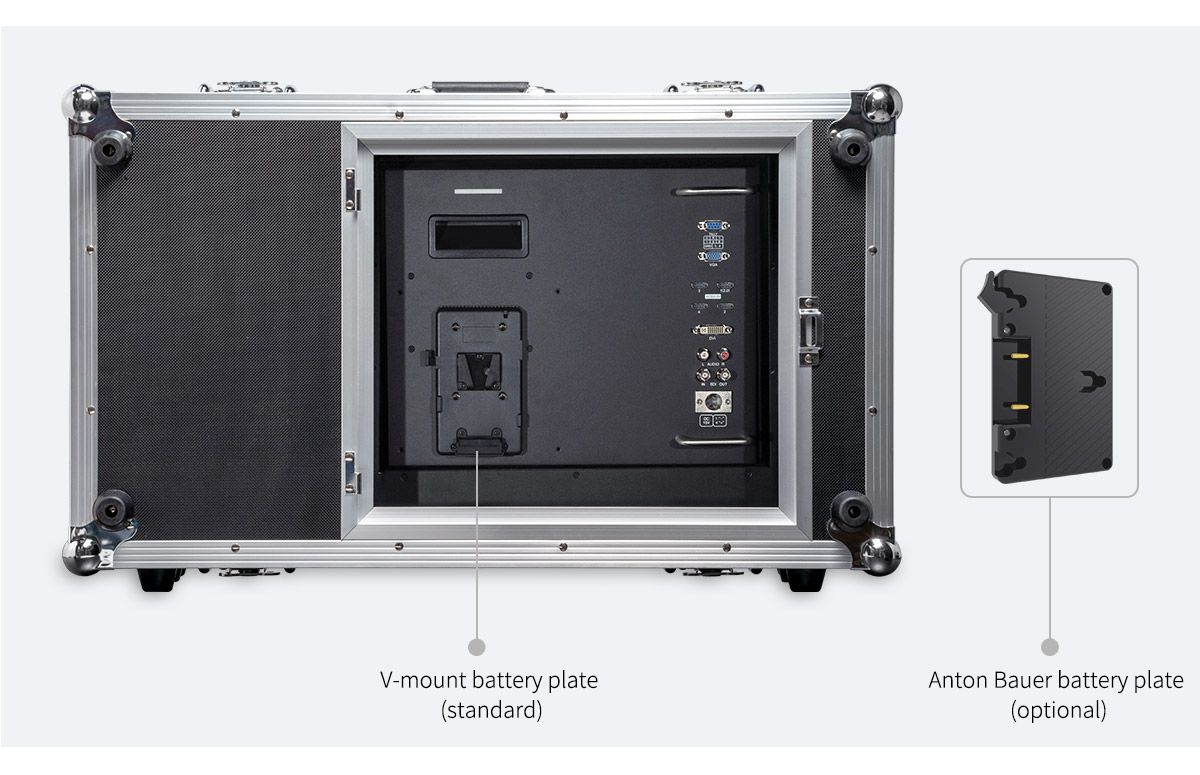

Flexible Power Supply
The monitor an be powered by DC adapter or lithium battery. For power adapter, you can connect XLR power connector; for battery, you can mount it on V-mount battery plate (standard) or Anton Bauer battery plate (optional).
The monitor an be powered by DC adapter or lithium battery. For power adapter, you can connect XLR power connector; for battery, you can mount it on V-mount battery plate (standard) or Anton Bauer battery plate (optional).

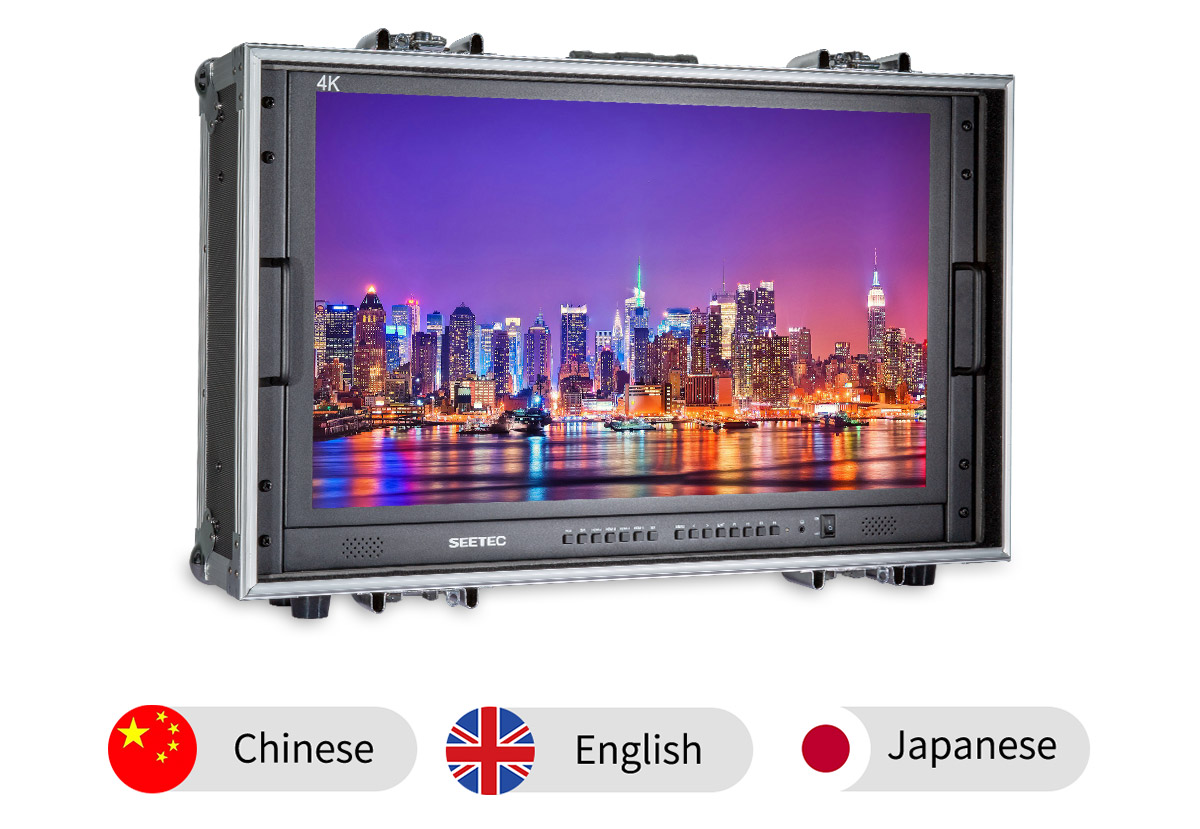

3 Languages Supporting
4K280-9HSD-CO built-in up to 3languages, you can go into the menu and change the language anytime you need!
4K280-9HSD-CO built-in up to 3languages, you can go into the menu and change the language anytime you need!

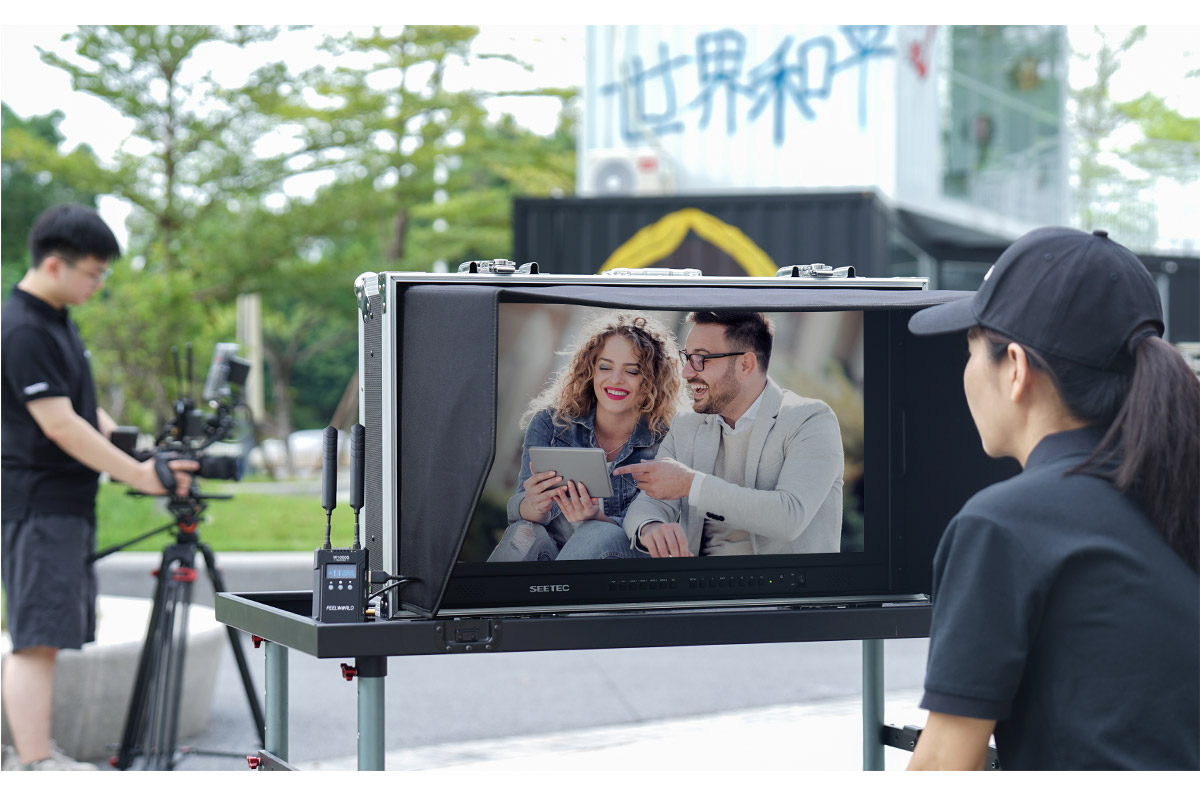

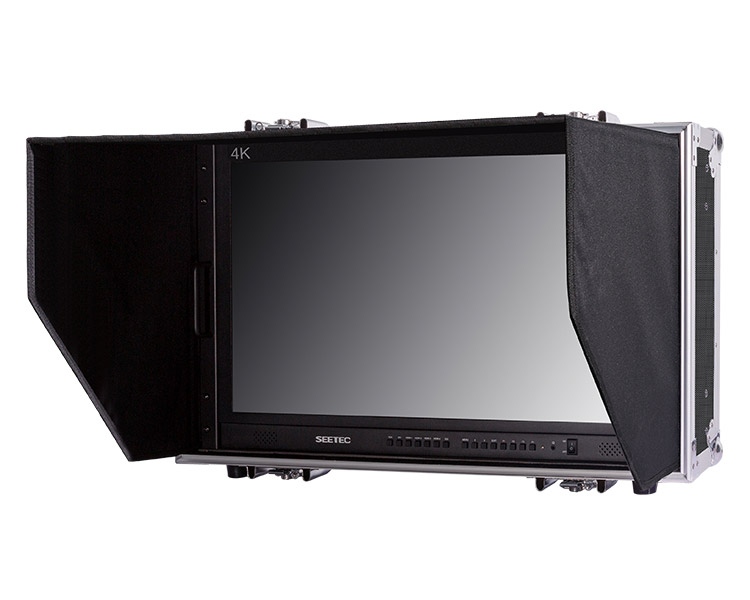

Removable Sun-hood, Fearless of Strong Light
The attached removable sun-hood, can achieve good monitoring effect when outdoor shooting.
The attached removable sun-hood, can achieve good monitoring effect when outdoor shooting.
1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output
3. Special Features:
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* x1.33, x1.5, x1.8, x2.0
* Image Flip (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Grid Marker (3X3, 6X6, 9X9)
* Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
* Line Color (Red, Green, Blue, White)
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* x1.33, x1.5, x1.8, x2.0
* Image Flip (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Grid Marker (3X3, 6X6, 9X9)
* Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
* Line Color (Red, Green, Blue, White)
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
-

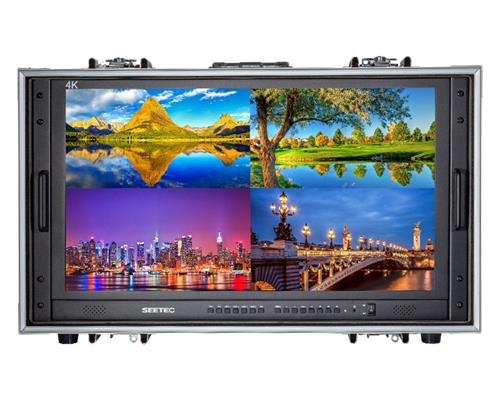

Quad View
Support 4x 4K HDMI, 3G-SDI, VGA, DVI input
Dual View
Meet your different screen display needs.
Input Swap
To exchange the input signal of the split screen.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows white highlight over parts of the image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue and White according to different tone of the subject.
Image Flip
The 90°, 180°, 270°of the image around flip.
Display Spec.
| Model | 4K280-9HSD-CO |
| Screen Size | 27" |
| Color Depth | 1.07B (10 bit) |
| Color Gamut | DCI-P3 95%, sRGB 100% |
| Resolution | 3840×2160 pixels |
| Pixel Pitch | 0.1554 (H) x 0.1554(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 178°(H) / 178°(V) |
Input
| 4 X HDMI | HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ) |
| 1 X BNC | SDI |
| 1 X DVI | DVI |
| 1 X VGA | VGA |
| 2 X RCA | Audio(L/R) |
| 1 X Tally | Tally |
Output
| 1 X BNC | SDI |
Audio
| Audio Out | Stereo Headphone, Speaker |
SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60) |
| HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30) |
| 480p/576p |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC12～24V (XLR) |
| Power Consumption | ≤45W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 731L×410H×39D (mm) (W/O Suitcase) / 780L×470H×250D (mm) (W/ Suitcase) |
| Unit Weight | 21.7kg (with Suitcase) |
| Outer Carton Qty | 1 |
| Outer Carton Size | 840*300*530 (mm) |
| Gross Weight | 24kgs |
Advanced Features
| * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
| * Peaking Focus Assist |
| * False Color |
| * Anamorphic(x1.33, x1.5, x1.8, x2.0) |
| * Display Rotate (0°, 90°, 180°, 270°) |
| * Check Field (Red, Green, Blue, Mono) |
| * Image Freeze |
| * Zoom |
| * Pixel to Pixel |
| * Center Marker |
| * Grid Marker (3X3, 6X6, 9X9) |
| * Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1) |
| * Line Color (Red, Green, Blue, White） |
| * Color Temperature Adjustment |
| * Built-in LED tally indicators (Red, Green, Yellow) |

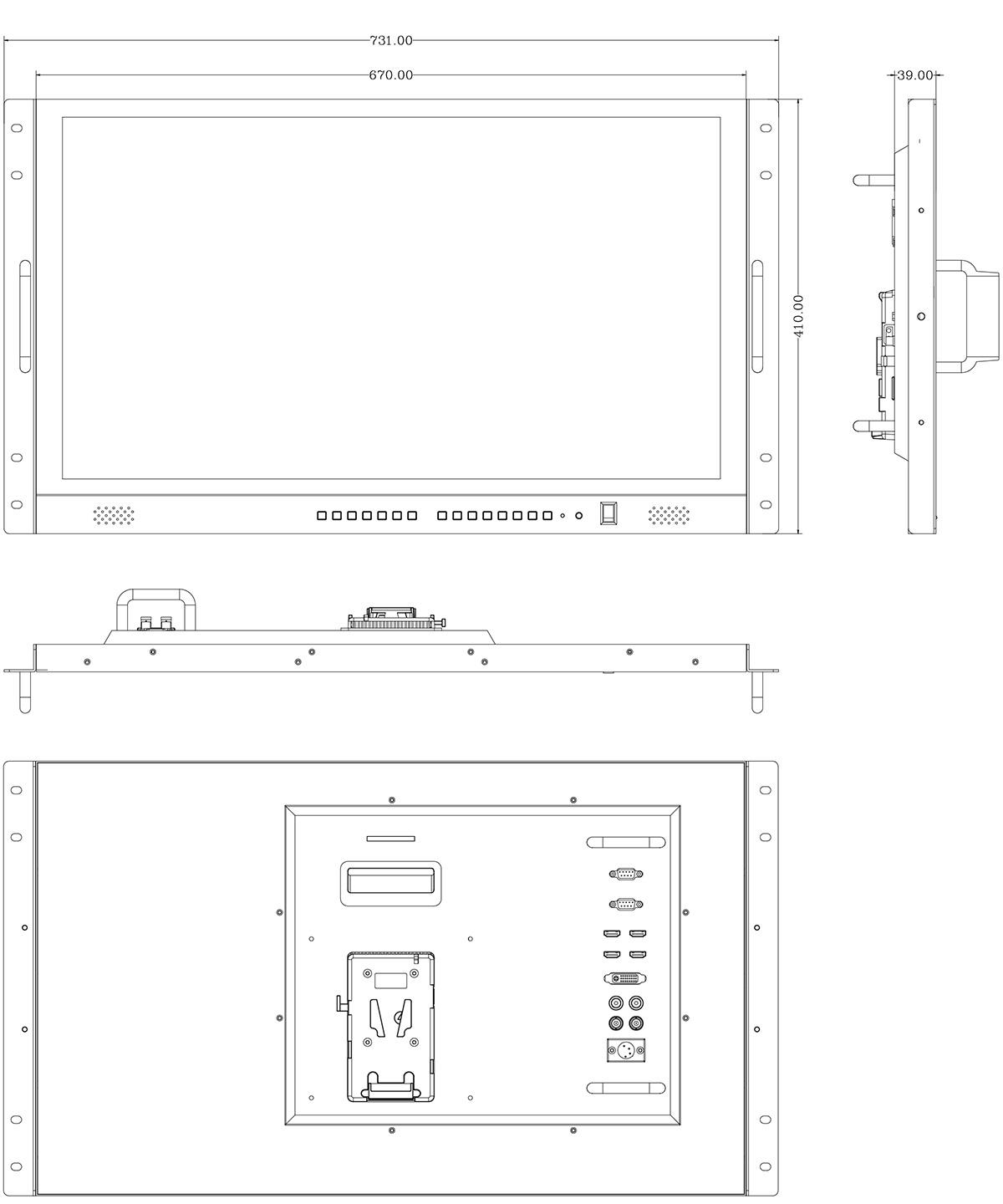

Dimensions (Unit: mm)
Standard Package Includes:
1× Mini HDMI Cable
1× V Battery Plate
1× 5A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
1× Mini HDMI Cable
1× V Battery Plate
1× 5A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
